Running WDL-GWAS on the UK Biobank RAP

In this example, we provide a tutorial to reproduce the two GWAS studies performed in the WDL-GWAS paper: BMI and colorectal cancer. This involves a bit more than running the workflow since we need to prepare the data for it. Also, since you will be interacting with the RAP and real world data, this involves costs and some time investment (however most of the time is just waiting for jobs to finish so you can do something else).

Creating the Covariates File

First we need to extract the relevant fields from the UK Biobank's main dataset, we can do this using dx extract_dataset:

dx extract_dataset DATASET_RECORD_ID --fields-file docs/src/assets/paper_fields.txt --output raw_covariates.csv

However, the extracted dataset cannot be directly used with the WDL-GWAS workflow, we first need to define the covariates and phenotypes from the extracted fields. The following Julia code snippet creates such a covariate file. If you don't want to download Julia and reproduce the code, here is what it does:

• It makes sure the FID and IID are defined and correspond to the eid field.
• It defines the current participants' age.
• It extracts the participants self reported ethnic background
• It defines colorectal cancer has having any of the C18, C19 or C20 ICD10 code.
• It extracts the BMI column

If you want to reproduce this example, you will need to download Julia for which I recommend using juliaup. Then, you can run the below code interactively using the REPL by typing julia.

using Pkg; Pkg.activate("docs"); Pkg.instantiate()
using CSV
using DataFrames
using Dates

function parse_ICD10_col!(parsed_col, col, codes)
    for index in eachindex(parsed_col)
        val = col[index]
        val === missing && continue
        parsed_col[index] =  parsed_col[index] | any(code -> startswith(val, code), codes)
    end
    return parsed_col
end

function parse_cancer(cols...; codes)
    cancer_col = zeros(Int, length(first(cols)))
    for col in cols
        parse_ICD10_col!(cancer_col, col, codes)
    end
    return cancer_col
end

superethnicity(x::Missing) = x

"""
This will group `Do not know` and `Prefer not to answer` together
"""
superethnicity(x) = first(string(x))

cancer_registry_cols = [
    "participant.p40006_i0",
    "participant.p40006_i1",
    "participant.p40006_i2",
    "participant.p40006_i3",
    "participant.p40006_i4",
    "participant.p40006_i5",
    "participant.p40006_i6",
    "participant.p40006_i7",
    "participant.p40006_i8",
    "participant.p40006_i9",
    "participant.p40006_i10",
    "participant.p40006_i11",
    "participant.p40006_i12",
    "participant.p40006_i13",
    "participant.p40006_i14",
    "participant.p40006_i15",
    "participant.p40006_i16",
    "participant.p40006_i17",
    "participant.p40006_i18",
    "participant.p40006_i19",
    "participant.p40006_i20",
    "participant.p40006_i21"
]

raw_covariates = CSV.read("raw_covariates.csv", DataFrame)

covariates = select(raw_covariates,
    "participant.eid" => "FID",
    "participant.eid" => "IID",
    "participant.p22001" => "SEX",
    "participant.p34" => (x -> Int(Dates.year(now())) .- x) => "AGE",
    "participant.p21000_i0" => (x -> superethnicity.(x)) => "SUPER_ETHNICITY",
    "participant.p23104_i0" => "BMI",
    cancer_registry_cols => ((cols...) -> parse_cancer(cols...; codes=["C18", "C19", "C20"])) => "COLORECTAL_CANCER"
)

CSV.write("covariates.csv", covariates)

Finally we can upload the dataset to the UK Biobank RAP using dx upload:

dx upload --path /wdl_gwas_covariates.csv covariates.csv

Extracting Imputed and Typed Genotypes

WDL-GWAS requires both imputed and typed genotypes. To get those we will (i) use the TOPMed imputed genotypes which should be provided in your /Bulk/Imputation/ folder and (ii) add some quality control filters. And of course, to make this reproducible, we will use another WDL workflow.

The workflow can be found in workflows/extract_genotypes.wdl, feel free to adapt it to your own needs.

Then you can run it using the following DNA Nexus commands. First we compile it using dxCompiler:

java -jar $DX_COMPILER_PATH compile workflows/extract_genotypes.wdl \
-f -project $RAP_PROJECT_ID \
-extras config/extras.json \
-reorg \
-folder /workflows/extract_genotypes \
-inputs docs/src/assets/extract-ukb-genotypes.inputs.json

where:

• DX_COMPILER_PATH is set as per the installation's instruction.
• RAP_PROJECT_ID is your UK Biobank RAP project ID.
• docs/src/assets/extract-ukb-genotypes.inputs.json is the file providing the workflow's inputs. In particular it points to the various BGEN files from TOPMed and VCF sites files.

The compiler might output some warnings like missing input for non-optional parameter but you can ignore these.

The command will do a few things:

1. It will compile and upload the workflow to the UK Biobank RAP
2. It will create a corresponding inputs.dx.json file locally which can be used to run the workflow

Then we can run the workflow with:

dx run -y \
-f docs/src/assets/extract-ukb-genotypes.inputs.dx.json \
--priority high \
--destination /ukb_extracted_genotypes/ \
--preserve-job-outputs \
/workflows/extract_genotypes/extract_ukb_genotypes

This workflow runs in approximately 5 hours and will cost about £20. The resulting files will be available in the /ukb_extracted_genotypes folder.

Running WDL-GWAS

Similarly to the previous step, we need to provide WDL-GWAS' inputs via a JSON file. In this example, the file paths will point to the freshly extracted imputed and typed genotypes. We also need to provide some phenotypes of interest, here BMI and COLORECTAL_CANCER and for illustration, we will restrict the analysis to a self-reported White ethnic background.

The full JSON input file is located in docs/src/assets/paper.inputs.json for which an extract is presented here:

{
    "gwas.covariates_file": "dx://project-J0pkqyQJpYQ133JG1p2J1qzv:/wdl_gwas_covariates.csv",
    "gwas.genotypes": {
        "chr": "all",
        "bed": "dx://project-J0pkqyQJpYQ133JG1p2J1qzv:/ukb_extracted_genotypes/typed.bed",
        "bim": "dx://project-J0pkqyQJpYQ133JG1p2J1qzv:/ukb_extracted_genotypes/typed.bim",
        "fam": "dx://project-J0pkqyQJpYQ133JG1p2J1qzv:/ukb_extracted_genotypes/typed.fam"
    },
    "gwas.imputed_genotypes": [
        {
            "chr": "1",
            "pgen": "dx://project-J0pkqyQJpYQ133JG1p2J1qzv:/ukb_extracted_genotypes/ukb21007_c1_b0_v1.imputed.pgen",
            "psam": "dx://project-J0pkqyQJpYQ133JG1p2J1qzv:/ukb_extracted_genotypes/ukb21007_c1_b0_v1.imputed.psam",
            "pvar": "dx://project-J0pkqyQJpYQ133JG1p2J1qzv:/ukb_extracted_genotypes/ukb21007_c1_b0_v1.imputed.pvar"
        },
        {
            "chr": "2",
            "pgen": "dx://project-J0pkqyQJpYQ133JG1p2J1qzv:/ukb_extracted_genotypes/ukb21007_c2_b0_v1.imputed.pgen",
            "psam": "dx://project-J0pkqyQJpYQ133JG1p2J1qzv:/ukb_extracted_genotypes/ukb21007_c2_b0_v1.imputed.psam",
            "pvar": "dx://project-J0pkqyQJpYQ133JG1p2J1qzv:/ukb_extracted_genotypes/ukb21007_c2_b0_v1.imputed.pvar"
        },
    ...
    ],
    "gwas.covariates": ["AGE", "SEX", "AGE_x_AGE", "AGE_x_SEX"],
    "gwas.phenotypes": ["COLORECTAL_CANCER", "BMI"],
    "gwas.filterby": ["SUPER_ETHNICITY=1"],
    ...
}

Then, as in the previous step, we need to compile WDL-GWAS and upload it to the RAP, this can be done with dxCompiler:

java -jar $DX_COMPILER_PATH compile workflows/gwas.wdl \
-f -project $RAP_PROJECT_ID \
-extras config/extras.json \
-reorg \
-folder /workflows/gwas \
-inputs docs/src/assets/paper.inputs.json

Then, to run WDL-GWAS:

dx run -y \
-f docs/src/assets/paper.inputs.dx.json \
--priority high \
--preserve-job-outputs \
--destination /wdl_gwas_paper_outputs/ \
/workflows/gwas/gwas

Of course you can change the destination /wdl_gwas_paper_outputs to your need. You should be able to visualize the run execution on your UK Biobank RAP account under the MONITOR tab.

Outputs

The workflow outputs will be stored in the /wdl_gwas_paper_outputs/ folder.

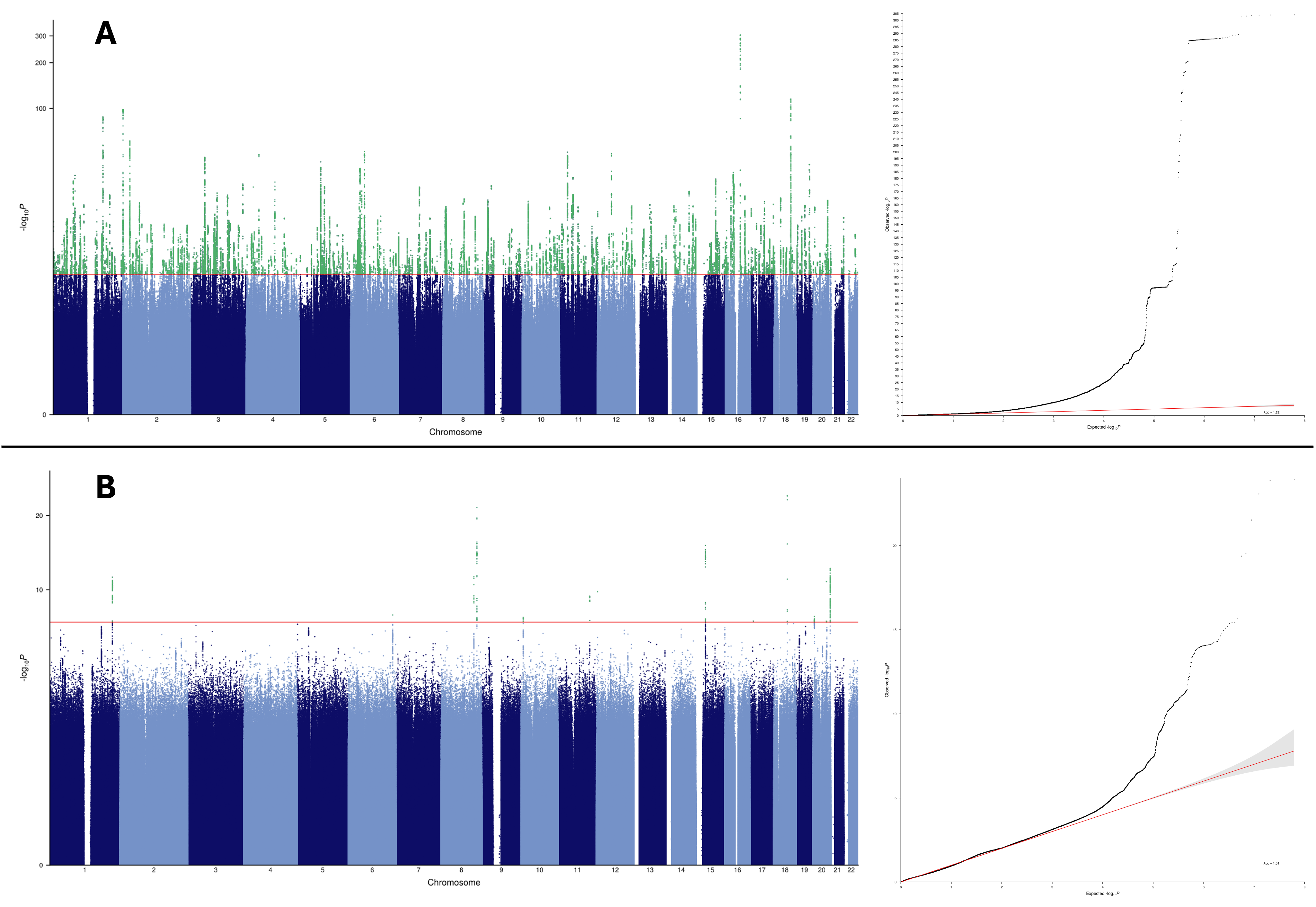

• In particular, the asscociated summary statistics can be found in all.TRAIT.gwas.tsv where TRAIT is either BMI or COLORECTAL_CANCER. The all prefix indicates that no groups were provided. Similarly, Manhattan and QQ plots are named all.TRAIT.manhattan.png and all.TRAIT.qq.png and displayed below as an illustration.

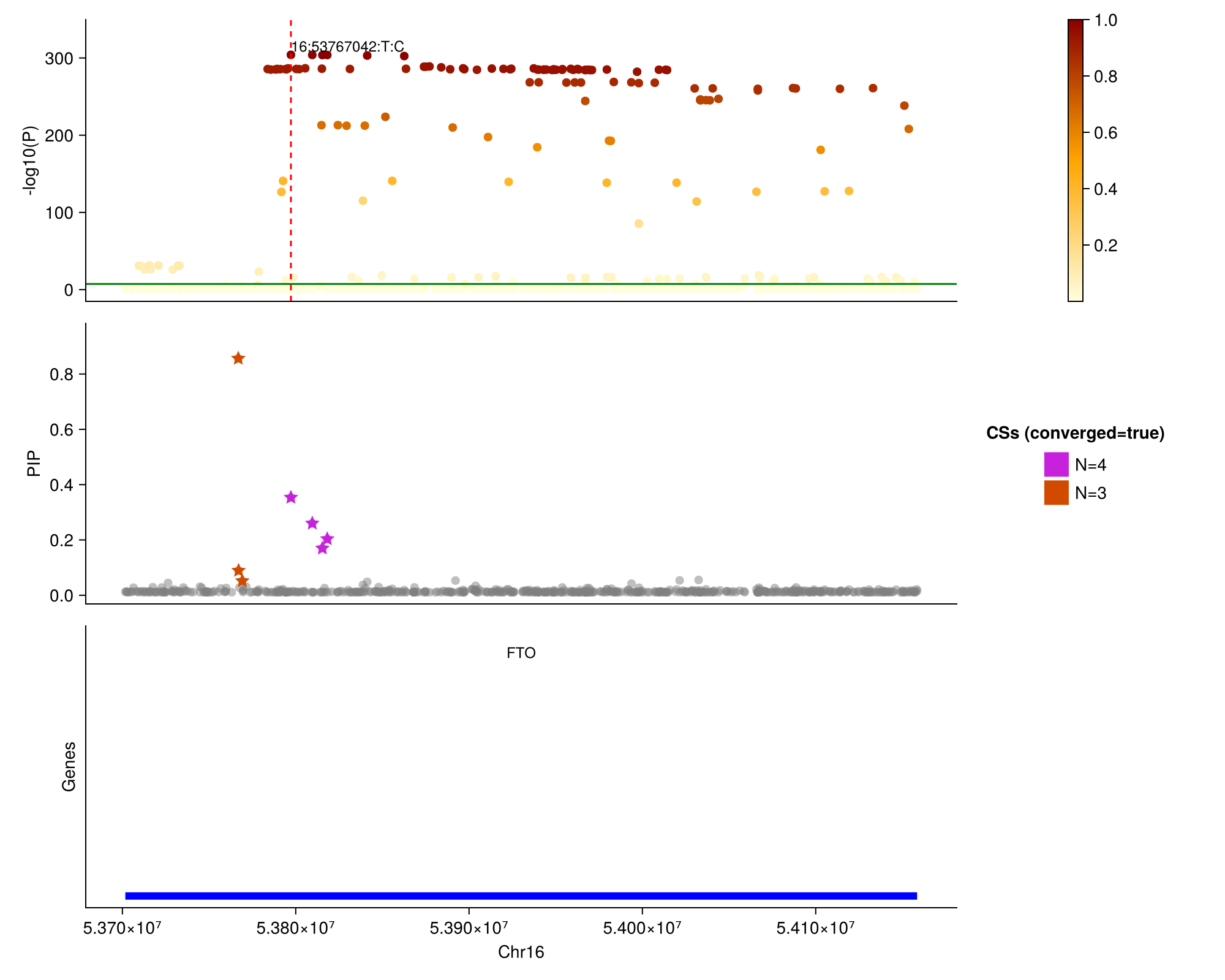

• Fine-mapping results are stored in files named all.TRAIT.finemapping.tsv with TRAIT being either BMI or COLORECTAL_CANCER as before. Furthermore, a locus plot will be created for each fine-mapped locus. These plots are named all.TRAIT.LEAD_VARIANT_ID.locuszoom.png where the LEAD_VARIANT_ID tags the locus. For instance, the locus tagged by the classic FTO variant rs1421085 is found in all.BMI.16_53767042_T_C.locuszoom.png. It has been assigned to a credible set with posterior inclusion probability 0.35, the highest in the set.
